MAMBA 70CC

$879.99$1,349.99

Mamba 70cc ARF – No ETA at this time.

Clear
Build your own Combo and Save!
1
AURA PROFESSIONAL
Type
$249.99 $199.99
2
2S 2000MAH 15C LIPO RECEIVER PACK

Only 1 left in stock

$19.99 $17.99
1
DESERT AIRCRAFT DA-70

Only 1 left in stock

$749.99 $667.49
1
DESERT AIRCRAFT DA-70 MUFFLER SET

In stock

$170.00 $146.20
1
15mm ALUMINUM ENGINE STANDOFF

In stock

$9.99 $8.99
1
FLEX 24 X 10 THIN CARBON FIBER PROPELLER

In stock

$72.99 $69.34
1
5" ALUMINUM SPINNER - 2 BLADE

Only 1 left in stock

$164.99 $156.74
SKU: FPM11 Categories: ,

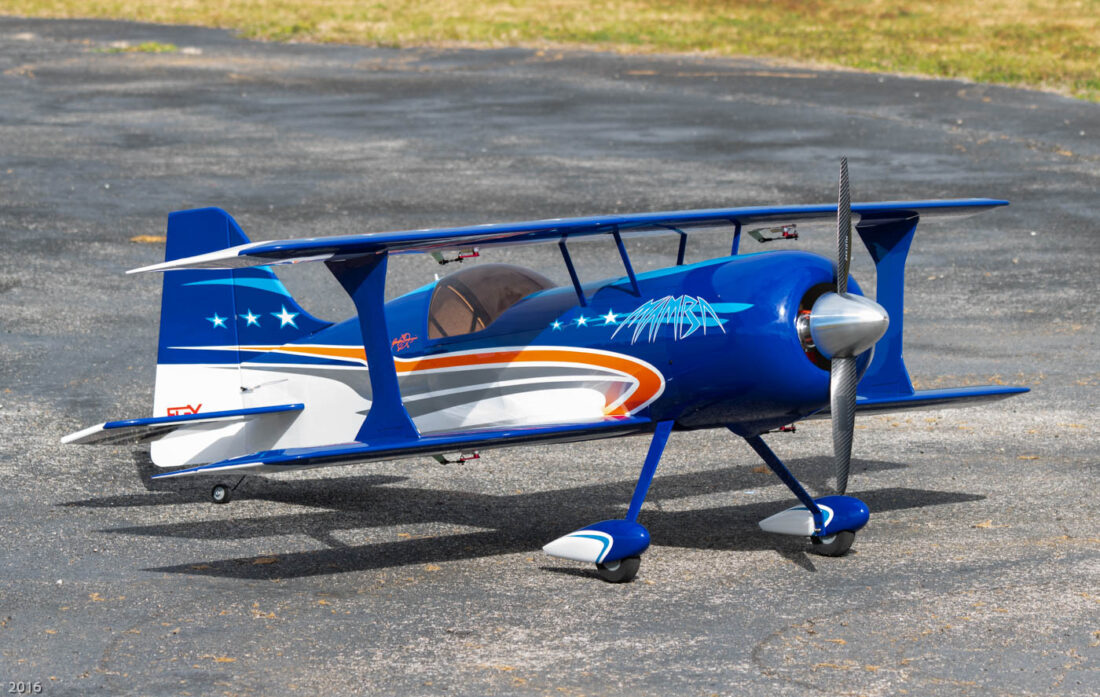

Available now in the NEW Blue and Orange scheme!

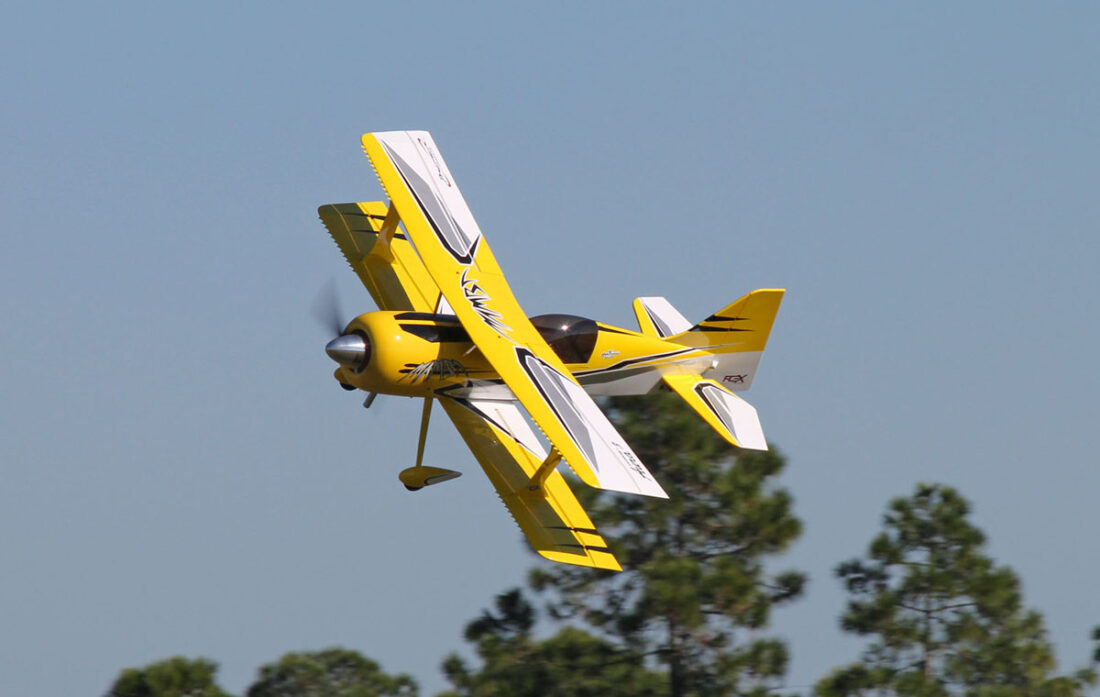

The Mamba 50-70cc combines light weight with large wing area. Experience and intense attention to every aerodynamic and geometric detail allow a biplane experience not available anywhere else!

Starting with a Model 12, Kevin Kimball of Jim Kimball Enterprises and Quique Somenzini have made various changes to further refine the design, and perfect it as a 3D model. These changes include a new sleek cowling, more wing chord, and revised wing tips and ailerons.

Light wing loading and absolute minimum control coupling are key to great 3D performance and the Mamba excels in this area as demonstrated by its 2070 sq. in. of wing and a flying weight of less than 19 pounds! Years of F3A and 3D biplane experience make Quique uniquely qualified to design the Mamba to fly just right.


ARF INCLUDES:
  • Plug in upper and lower wings with pinned inter-plane struts for easy transport
  • Balsa, Ply-wood, construction
  • Gigantic control surfaces for extreme 3D performance
  • Precise Aerobatics with minimum control coupling
  • Super-light Rigid Airframe
  • Custom G10 Control Horns for Optimized Throw and Precision
  • Painted Fiberglass Wheel Pants and Cowling
  • Main Hatch and Auxiliary Forward hatch removable tool-free with one Latch
  • Optional Shark Teeth Leading edge for reduction of Wing Rock and enhanced low speed control
  • Factory applied trim scheme
  • Easy to modify for Electric Motor
ARFSV INCLUDES ALL ARF FEATURES PLUS:

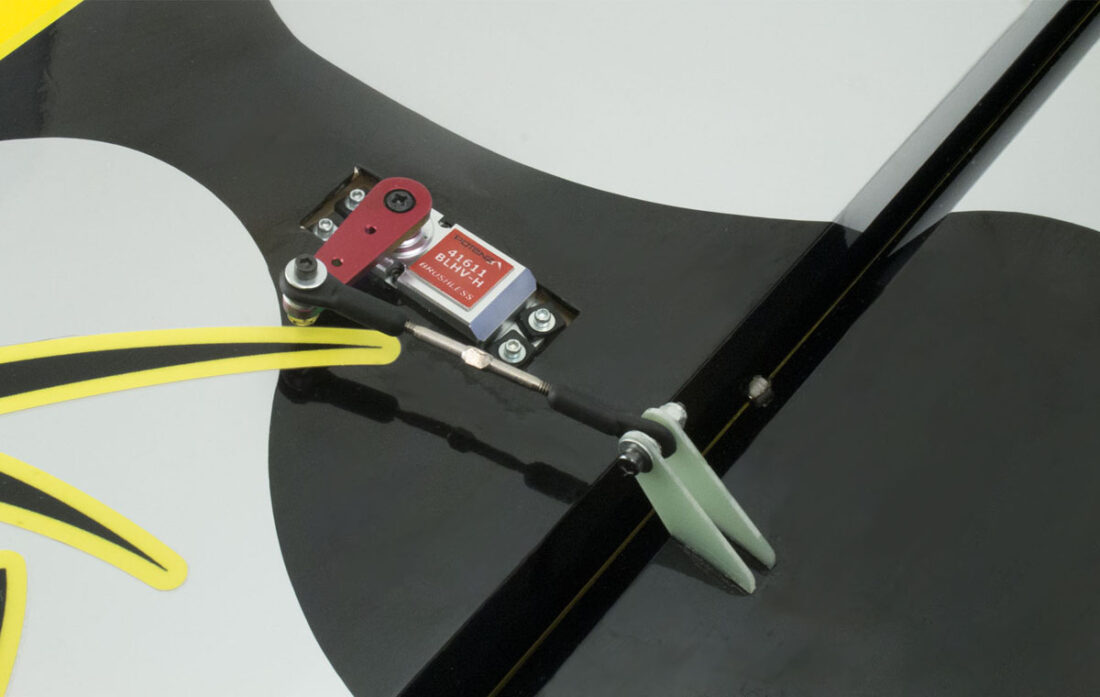

  • (6) Brushless Ultra-Torque Digital High Voltage Heavy Surface Servos Installed (FPZDS41611BLHV-H)
  • (5) Potenza 25 Tooth Aluminum Single Servo Arm, 1.25″ radius, red, 4-40 threaded, installed (FPZA0001)
  • (1) Potenza 25 Tooth Aluminum Double Servo Arm. 1.25″ radius, red, 4-40 threaded, installed (FPZA0002)
  • All possible Hinges and Control horn installed
  • Some servo extension cords provided

RECOMMENDED COMPLETION ITEMS:
  • Power (50-70cc Gas) DA70 Recommendations Shown
    • DA 70cc Twin Cylinder Engine (FPMDA70)
    • Exhaust System:
      • DA Open Stock Muffler (FPMDA70MUFLR)

      or

      • DA 2 to 1 header (45mm Drop) (contact us)
      • MTW TD110H rear discharge canister
    • Tru-Turn 5 in. Aluminum Spinner P-51 style, Hollow Back Plate (FPMTT5)
    • Falcon 24×9 gas. Carbon Fiber Propeller (FPMPFC2409)
    • 15mm Engine Standoffs (FPM1124)
  • Control
    • Aura 8 Open Stock AFCS (FPZAURA08)
    • (1) Standard Size Digital HV Servo (Throttle) (DS19410TGHV)
    • (6) Brushless Ultra-Torque Digital HV Heavy Surface Servos (Installed in SV) (FPZDS41611BLHV-H)
    • (5) Single side 1.25″ radius aluminum servo arm (Installed in SV) (FPZA0001)
    • (1) Double side 1.25″ radius aluminum servo arm (Installed in SV) (FPZA0002)
    • 8+ Channel Computer Radio recommended
    • 8+ Channel Receiver and Rx Batteries
  • Misc
    • Wing Bag Set for Main Wings – Order two sets (FPM357018)
    • ISDT D2 Charger (ISDTD2)
    • (2) Receiver Batteries (FPZBR20002s15)
    • Ignition Battery (FPZBR13002S25 w/regulator or as Required by engine manufacturer)

    Always check the WIKI for the latest Manual Updates and User Advise and Information!

Specifications:
Wingspan: 77.2″ 1961mm
Length 79.5″ 2020mm
Weight: 19lb 0oz 8.62kg
Wing Area: 2070 sq.in 133.5 sq.dm
Engine: Ignition 50-70cc
Channels: 5-8*
Servos: 7+

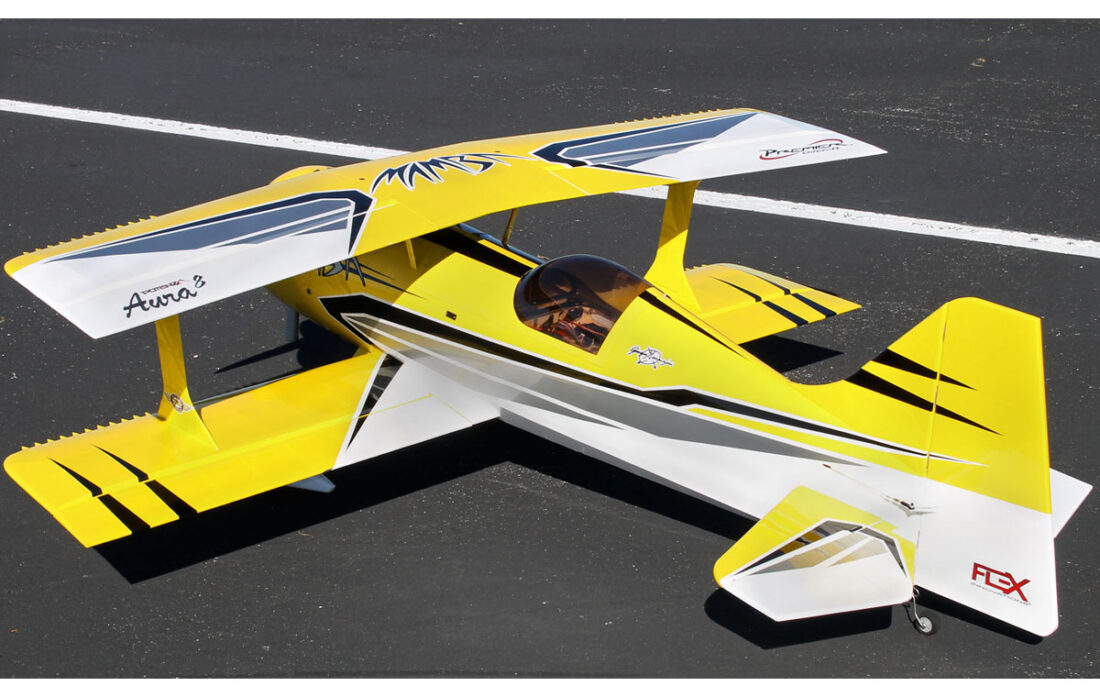

Yellow Trim Scheme Colors
ORACOVER® ULTRACOTE®
33 Cadmium Yellow HANU872 Bright Yellow
91 Silver HANU881 Silver
71 Black HANU874 Black
10 White HANU870 White

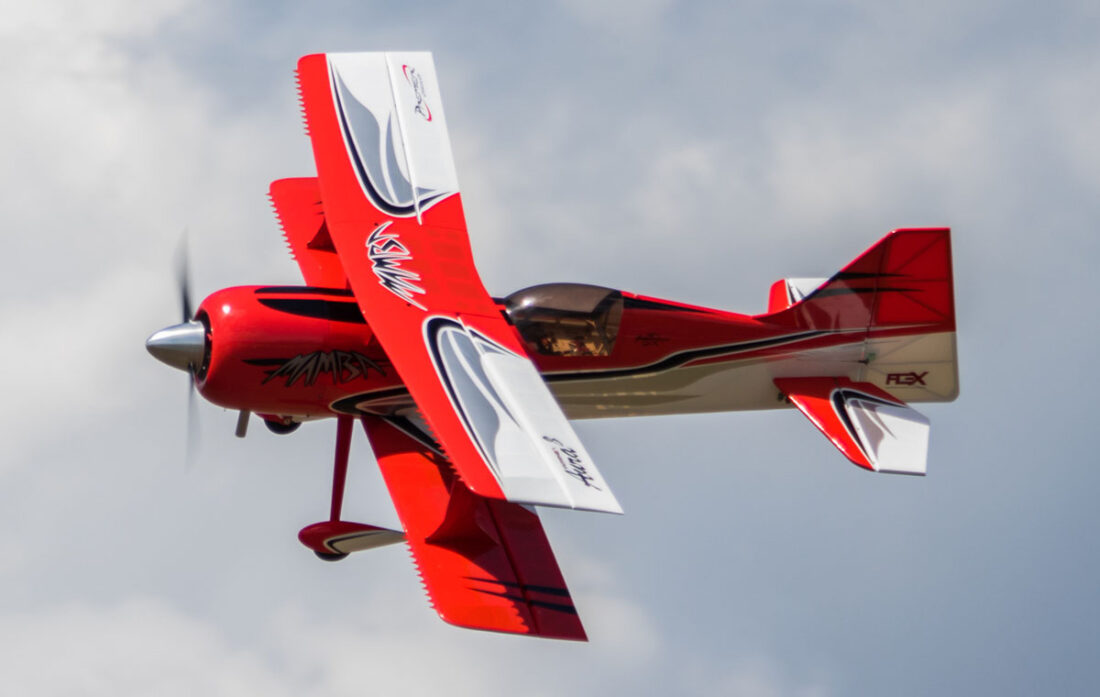

Red Trim Scheme Colors
ORACOVER® ULTRACOTE®
22 Bright Red HANU883 Flame Red
91 Silver HANU881 Silver
71 Black HANU874 Black
10 White HANU870 White



Blue Trim Scheme Colors
ORACOVER® ULTRACOTE®
60 Orange HANU877 Orange
50 Blue HANU873 Deep Blue
53 Sky Blue HANU875 Sky Blue
91 Silver HANU881 Silver
10 White HANU870 White


Click for notes regarding Spektrum Radio Installations <



Seth Flying the Mamba Electric at SEFF 2016 by Flying Giants





Seth Demo





Quique Demo
